TOTARESCUE

TOTA LIFT

Tota Lift 8

TL8

Tota Lift 4

TL4

Tota Lift 2

TL2

TOTA LIFT

TOTA LIFT provides a higher load capacity and stability during an operation. This is achieved by attaching the LCE (Load Capacity Enhancer) and metal construction on both ends.

The most powerful feature of TOTA LIFT lies in its modularity. Simply fill the gaps by connecting 2 or more TOTA LIFT bags, or by connecting the optional Multi-Role Disc together with the interlocking TOTA Crib & Wedge. The full lifting capacity, stability, and safety remain unaffected in all situations.

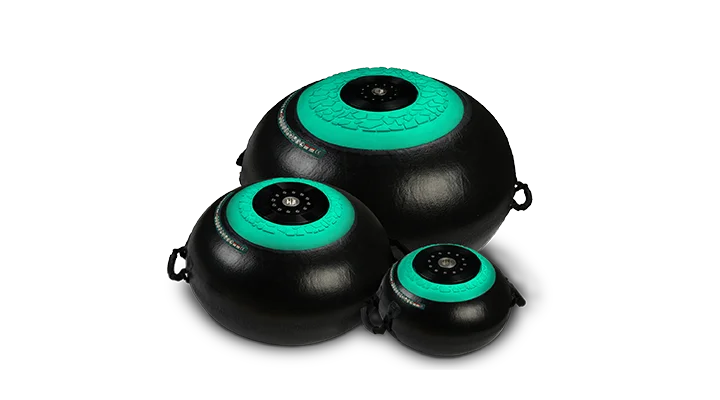

TOTA LIFT comes in 3 sizes: TL2, TL4 & TL8.

Tota Lift Specifications
SpecificationsTL2TL4TL8
Max. Operating Pressure12.5bar12.5bar12.5bar
Max. Lifting Capacity30 tonnes74 tonnes172 tonnes
Max. Lifting Capacity at Max. Lifting Height6.5 tonnes10 tonnes15 tonnes
Insertion Height 10mm/45mm10mm/55mm10mm/70mm
Max. Lifting HeightN x 275mmN x 440mmN x 665mm
Effective Lifting HeightN x 241mmN x 392mmN x 595mm
Temperature Range-20°C till +65°C-20°C till +65°C-20°C till +65°C
Weight7.5kg16.5kg38kg
Safety Factor >4 >4 >4

TOTA LIFT ACCESSORIES

TL2 Case

TL2 Case

TL4 Case

TL4 Case

TL8 Case

TL8 Case

Accessary Storage Case

Accessary Storage Case

Regulator

Regulator

Tota Lift Controller

Tota Lift Controller

Dual Air Cylinder Connector

Dual Air Cylinder Connector

Connector Plug

Connector Plug

Multi-Role Dise Plug

Multi-Role Disc Plug

Lift Base Plug

Lift Base Plug

Multi-role Dise

Multi-role Disc

Lift Base

Lift Base

Plug Key

Plug Key

Shut Off Hose

Shut Off Hose

Delivery Hose

Delivery Hose

Delivery Hose

Delivery Hose

Delivery Hose

Delivery Hose

Delivery Hose

Delivery Hose
